"M O R D A X"

HORSE SHOE STUDS


Why use Mordax studs?


Safety first...
Mordax studs will give your horse complete confidence and security on any type of road - wet, dry or ice bound. Horses which are nervous in traffic can be ridden with greater confidence, and those prone to slip acquire a perfect grip on any road surface, grass, etc. As with all shoeing matters, Mordax studs should only be fitted by a competent farrier (in the UK, registered with the FRC).

Durability...
As the Mordax stud wears it still retains its efficiency in preventing slipping, as the centre of the stud consists of an exceptionally hard carbide pin which wears down much more slowly than the surrounding steel, always standing proud of it. The durability of Mordax Studs greatly increases the life of the shoe, and an appreciable saving is made possible in a short period of time. The life of the stud is dependant upon individual conditions - use, load etc.

Experience...
The Mordax Stud is the original non-slip device for horses, in use for more than 70 years, having been originally developed in conjunction with the Swiss Army. We have extensive experience manufacturing Mordax studs for the army, police forces, and the Royal Mews, as well as for farriers worldwide, for numerous equestrian activities.


Product Range

Please click here to download our current leaflet.

Mordax Screw-in studs

Once the shoe has been tapped, these studs can be easily fitted and removed as required to suit riding conditions. Thread sizes (in Whitworth Standard) are indicated for each type.

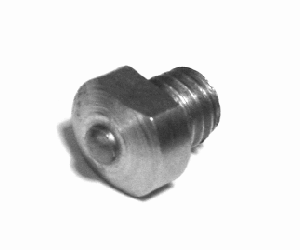

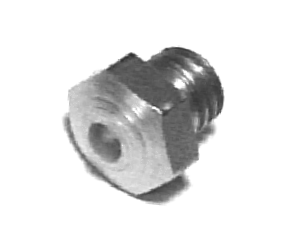

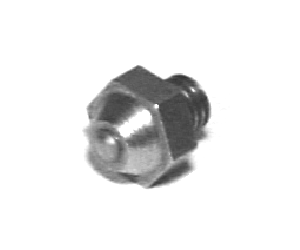

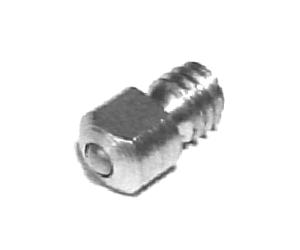

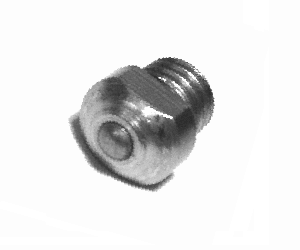

'RS' Stud 'NS' Stud 'NSF' Stud 'NHWS' Stud 'CS' Stud
3/8" or 5/16" 3/8" 3/8" 7/16" 5/16"

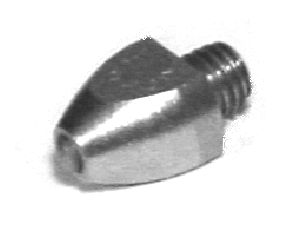

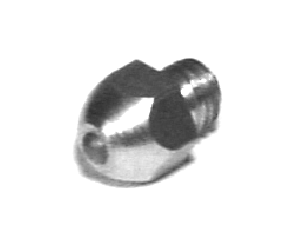

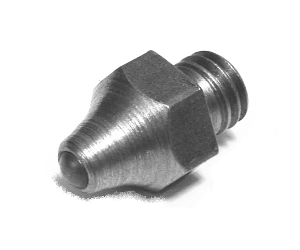

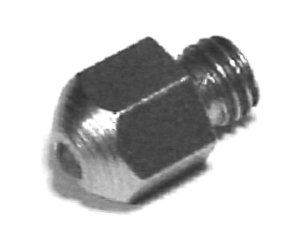

'OLY Rounded' 'B' Stud 'P' Stud 'O' Stud
3/8" 3/8" 3/8" 3/8"

Tools for Screw-in Studs

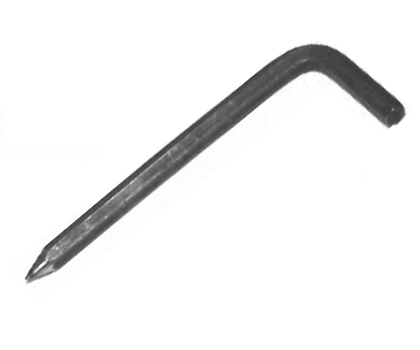

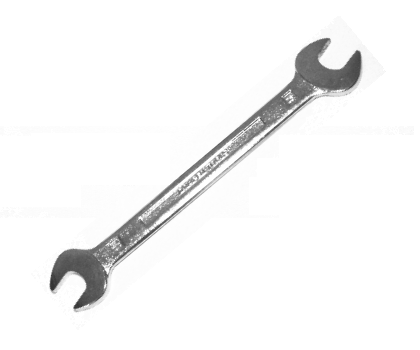

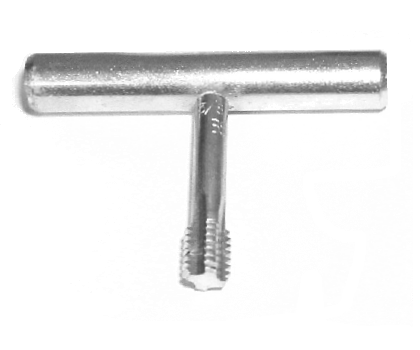

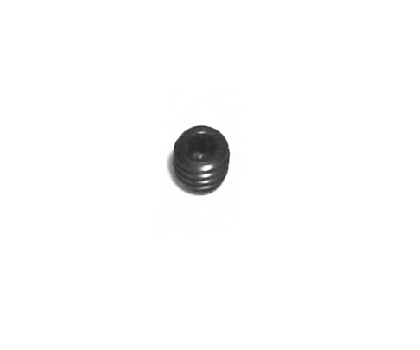

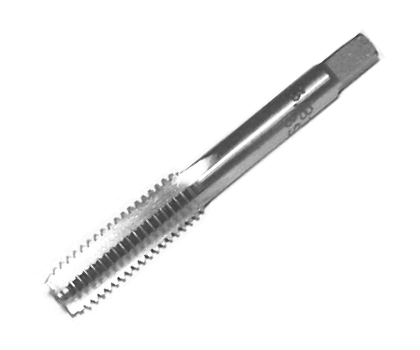

Whitworth Tap Tee Tap Spanner Sleeper Hexagonal Key
for tapping holes for cleaning threads   protects unused holes for 3/8" or
3/8" or 5/16" 3/8" or 5/16"   3/8" or 5/16" 5/16" sleepers

Mordax Tapered Studs

The original Mordax stud, with tapered bodies. Tapered punches are avilable for forming the tapered holes in the shoe. Punch sizes are indicted for each type.

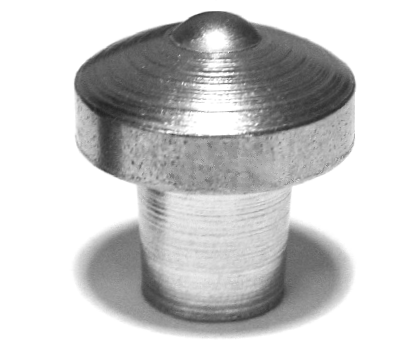

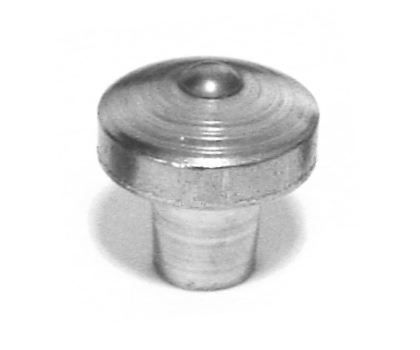

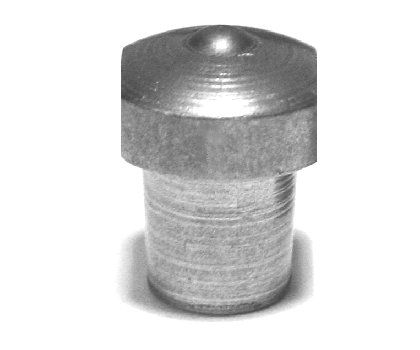

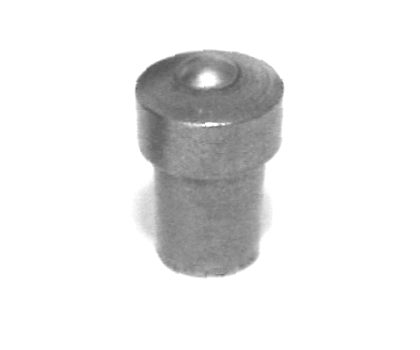

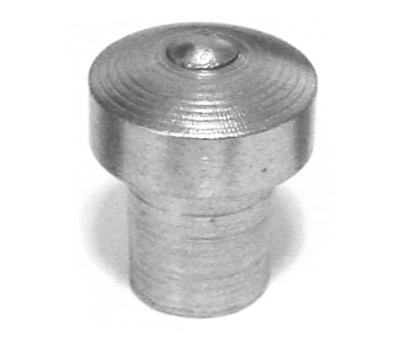

'C' Stud 'S' Stud 'N' Stud 'NX' Stud 'VH' Stud
B.3. B.3. B.1. B.1. B.2.

Mordax Tapered Plugs

These plugs can be deepset or countersunk into shoes, combining the benefit of standard Mordax studs with the practice of flat shoeing. Tapered punch sizes are indicted for each type.

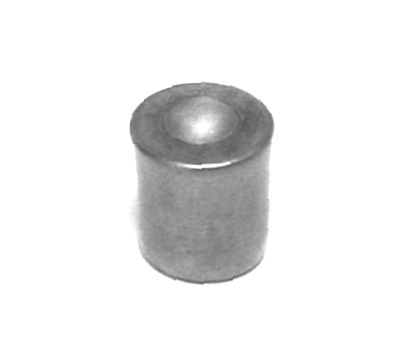

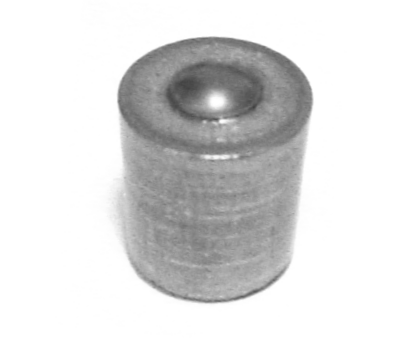

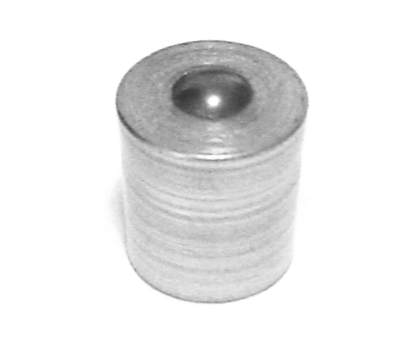

'C' Plug 'N' Plug 'NVH' Plug
B.3. B.1. B.1.

Mordax Non-slip Nails
Tools


Insist on the best...

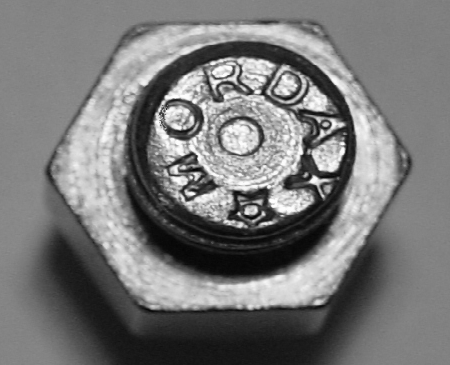

Only genuine Mordax studs are stamped with our Mordax trade mark (not 'CS' or Junior types).

All Mordax studs are British made.


Click here to CONTACT US for further information.
